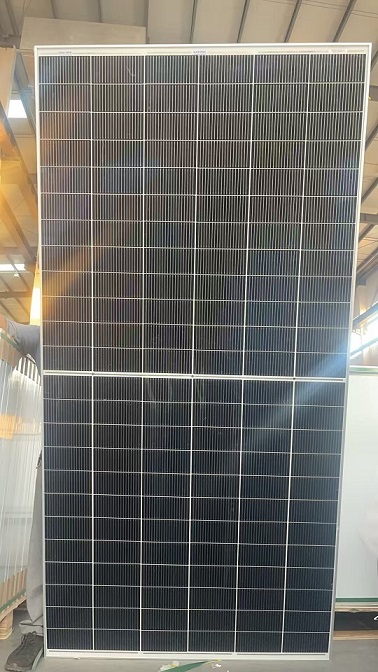

KN-600 KARIONN SOLAR PANEL 600 WATT

TECHNICAL SPECIFICATIONS:

Module Type: KN-600
Maximum Power (Pmax): 610W
Maximum Power Voltage (Vmp): 45.59V
Maximum Power Current (Imp): 13.35
Open-circuit Voltage (Voc): 55.25V
Short-circuit Current (Isc): 14.11A
Module Efficiency STC (%): 21.82%
Operating Temperature: -40°C ~+85°C
Maximum system voltage: 1000/1500VDC (IEC)
Maximum series fuse rating: 30A
Power tolerance: 0~+3%
Temperature coefficients of Pmax: -0.29%/°C
Temperature coefficients of Voc: -0.25%/°C
Temperature coefficients of Isc: 0.045%/°C
Nominal operating cell temperature (NOCT): 45+/-2°C

STC: Irradiance 1000W/m²
NOCT: Irradiance 800W/m²
Cell Temperature: 25°C
Ambient Temperature: 20°C
AM = 1.5
Wind Speed: 1m/s



Download the Technical Specification file here:

Category: Tags: , , , , , ,

Description

N-type 600 Watt Solar Panel

Silver/black version

Power tolerance of +/- 3%
IEC61215, IEC61000 CE ROHS FCC

KEY FEATURES:

  • SMBB TECHNOLOGY:
    Better light trapping and current collection to
    improve module power output and reliability.
  • HOT 2.0 TECHNOLOGY
    The N-type module with Hot 2.0 technology
    has better reliability and lower LID/LETID
  • PID RESISTANCE
    Excellent Anti-PID performance guarantee via
    optimized mass-production process and materials
    control.
  • ENHANCED MECHANICAL LOAD:
    Certified to withstand wind load (2400 Pascal)
    and snow load (5400 Pascal)
  • DURABILITY AGAINST EXTREME ENVIRONMENTAL CONDITIONS
    High salt mist and ammonia resistance.

LINEAR PERFORMANCE WARRANTY

12-Year Product Warranty

30 Year Linear Power Warranty

0.40% Annual Degradation Over 30 years

Download the Technical Specification file here:
